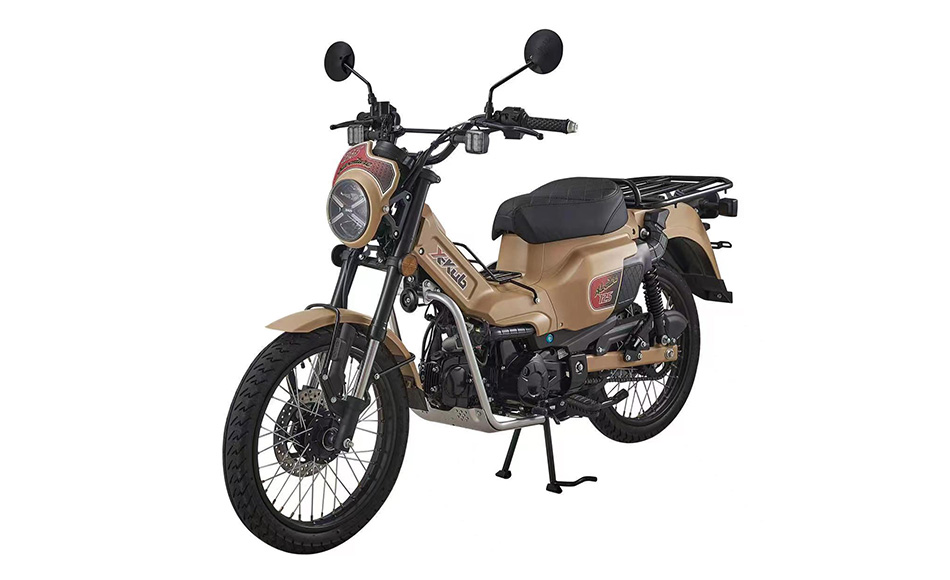

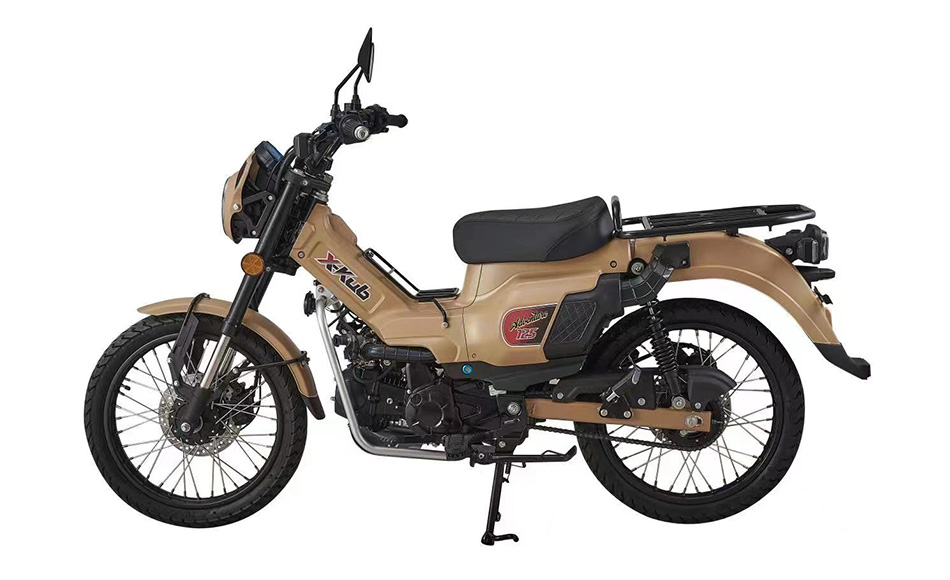

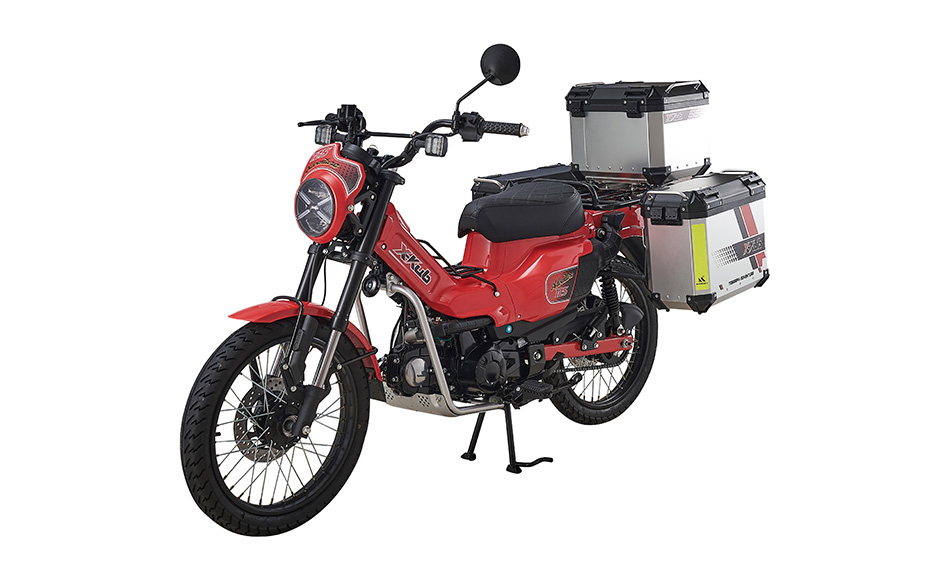

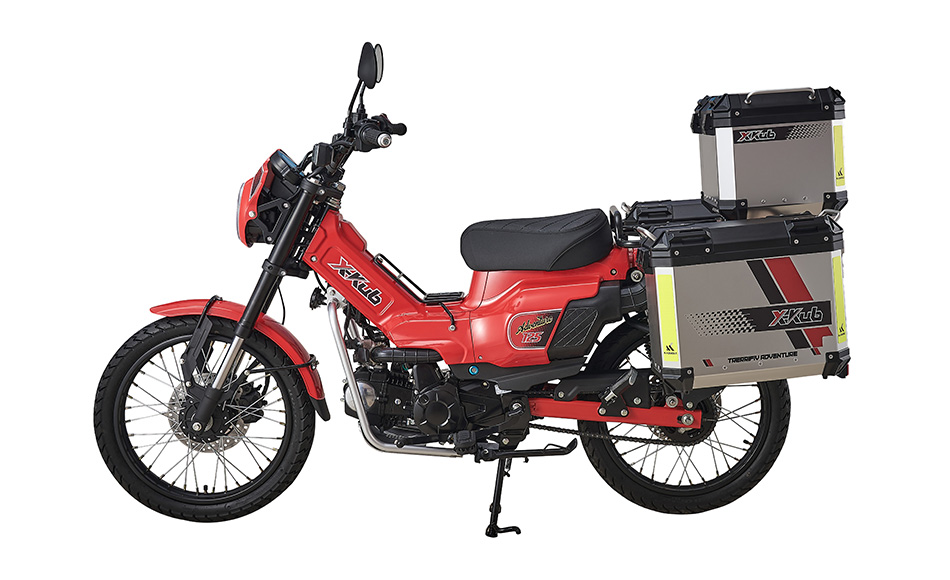

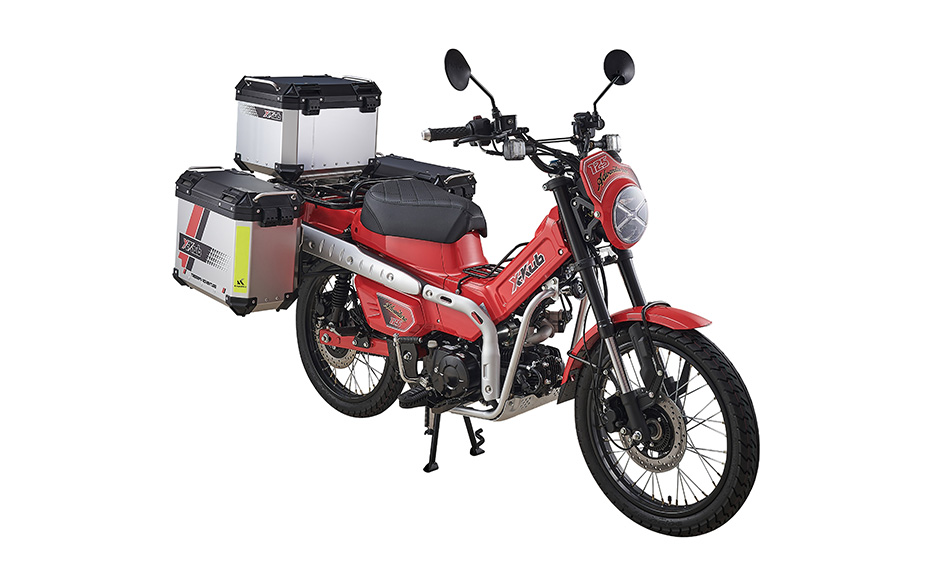

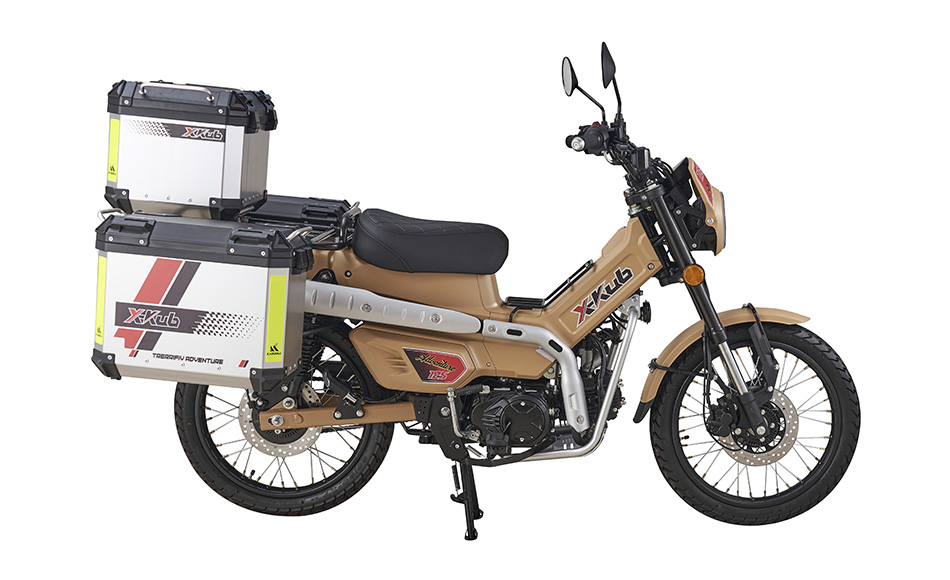

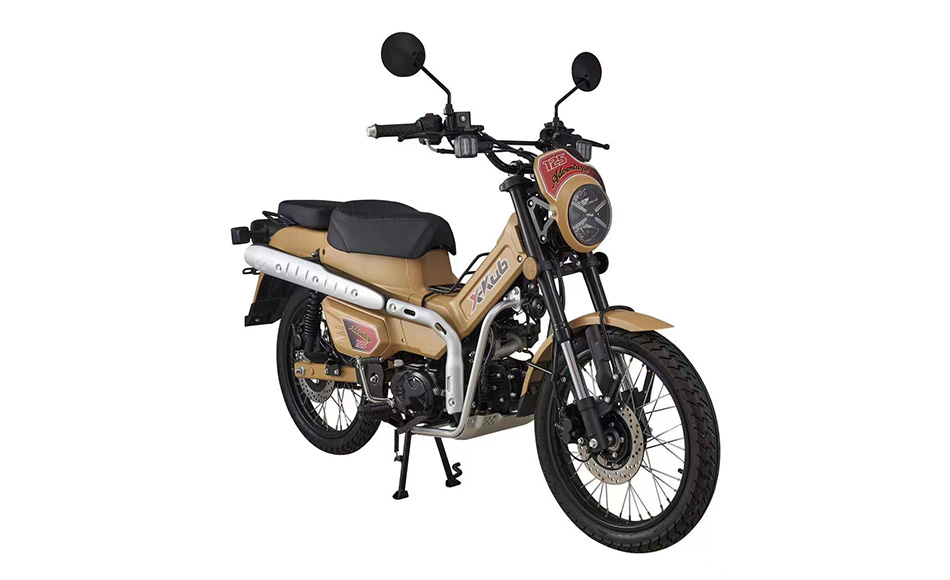

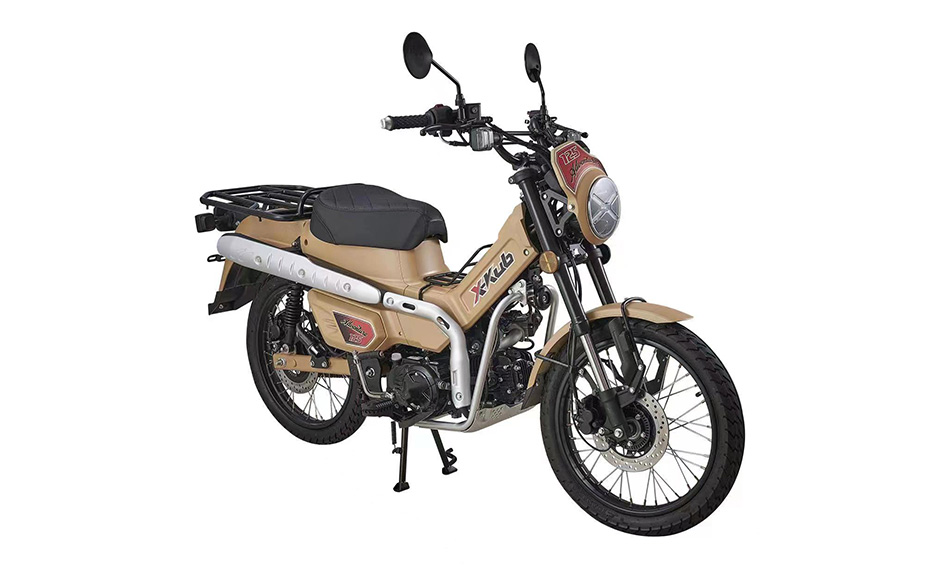

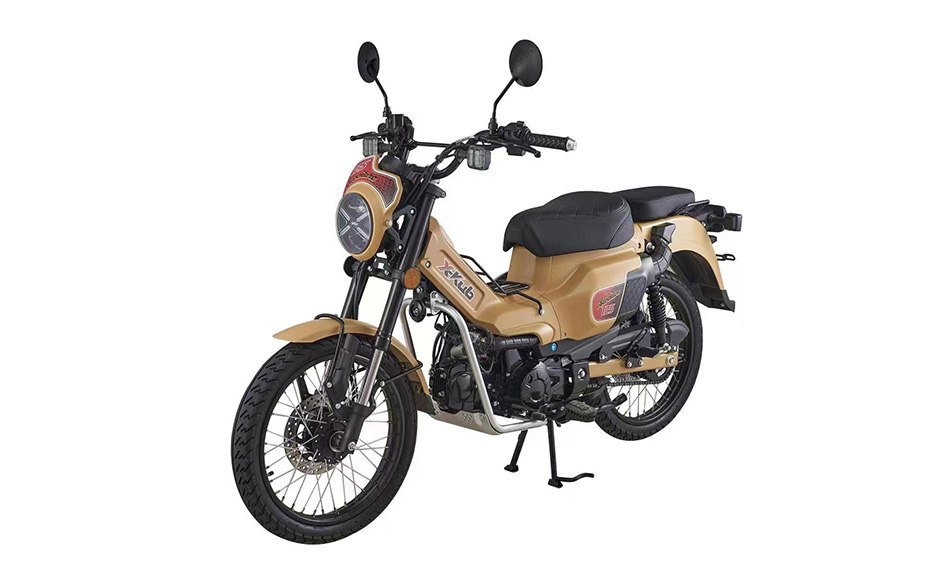

X KUB-50
X KUB-50
Practical
demonstration
details
Basic parameters
| Displacement(cc) | 50cc 106.7cc 119.9cc | Engine type | ZS139FMB-2 ZS152FMH-5 ZS152FMH-3 |
| Max.Power | 6.5(1+10%)/7500(1+5%) | Mаx.Torque | 9.0(1+10%)/5500(1+5%) |
| Compression Ratio | 9.0:1 9.7:1 9:01 | Fuel system | CDI EFI |
| Ignition | Electric or Kick Electric or Kick Electric or KickAir-cooled Air-cooled Air-cooled Chassis | Cooling system | 100kg |
| Curb weight ( kg ) | 790 | Seat height ( mm) | 2000 |
| Overall Length (mm) | 770 | Overall width (mm) | 1170 |
| Overall Height (mm) | 120 | Ground Clearance (mm) | 1260 |
| Wheelbase (mm) | 26.5 | Front suspension | Dual-clutch cycle 4-speed |
| Gear | Constant mesh, two stage transmission ,4-speed GearshiftConstant mesh, two stage transmission ,4-speed Gearshift | Fr. Tyre size and brand | 80/90-17(1.6-17) |
| Rr. Tyre size and brand | 80/90-17(1.6-17) | Brake Tyre | F&R. DISC CBS |
| Fr. brakes diameter (mm) | 220mm | Rear brakes diameter(mm) | 200mm |
| Top speed (km/h) | 50 80 85 | Battery | 12V5Ah |
| Speedometter | LCD | Fuel Tank | 5L |
